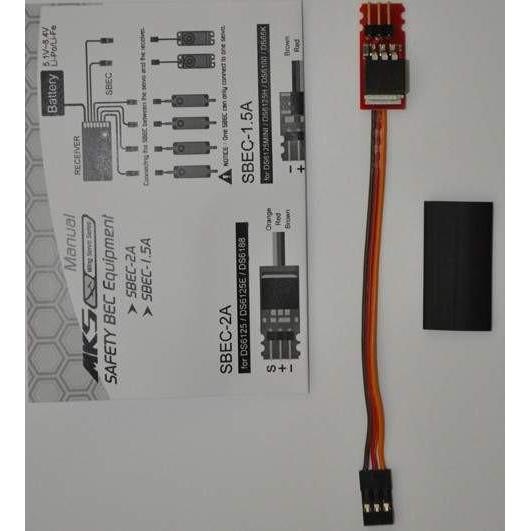

MKS SBEC - 1.5A

for DS6125MINI / DS6125H /DS6100 / DS65K

Input voltage：5.1V ~ 8.4V
Output voltage：5.0V±0.1V
Output maximum current：1.5A
Maximum working temp：70 °C
Wire lenght：12 cm / 7 cm
Weight：2.45 g

1. A dedicated SBEC per servo can protect the rest of the servos , and the receiver in case of abnormal situation like a servos blocked because of the control surface, or an unlikely malfunction of the servos.
2. Regulating the output current and avoid the servo overloading.
3. When using Lipo 7.2~8.4V, theSBEC can provide stable voltage to the servo.
4. Linear mode; No interference.
