MKS HBL380
$ 189.99
MKS HBL380
Ultra Torque Servo
- Perfect Servo for large-scale airplane, jet and 1/8, 1/5 scale buggy.
- Ideal for CCPM on 700~800 class helicopter.
- Ultra torque, incredible efficiency, and low power consumption.
- CNC Machined Metal Case Design for Exceptional Cooling.
- HD 4096 Resolution, 0.008ms Dead Band.
- Superior Holding Torque, Japanese Brushless Motor.
- Output performance to the top level – smoother, faster, and more efficient.
- Special design for high voltage 2s LiPo operation.
- Extremely strong Chrome-Titanium alloy gear, providing high level of durability that will survive heavy use.
Working Voltage：3.5 ~ 8.4 V DC Volts (2S Lipo un-regulated)
Working frequency：1520μs / 333Hz
Dead Band：0.0008 ms (Default)
Bearing：12x8 mm Double bearings
Motor：Japan High Quality Brushless Motor
Gear：Chrome-Titanium alloy gear
Electric current draw： 6.2A max. (8.2V) / 5.8A max. (7.4V) / 4.7A max. (6.0V)
Wire Length：24 cm

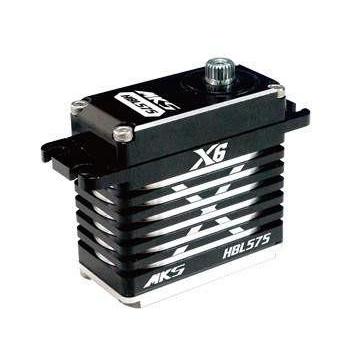

MKS HBL575
$ 189.99
MKS HBL575
High Speed Servo
- Perfect Servo for 1/10, 1/8 scale buggy.
- High speed, incredible efficiency, and low power consumption.
- CNC Machined Metal Case Design for Exceptional Cooling.
- HD 4096 Resolution, 0.008ms Dead Band.
- Superior Holding Torque, Japanese Brushless Motor.
- Extremely strong Chrome-Titanium alloy gear.
No. S0026001
Dimension：40 x 20 x 38.5 mm
Working Voltage：3.5 ~ 8.4 V DC Volts (2S Lipo un-regulated)
Working frequency：1520μs / 333Hz
Dead Band：0.0008 ms (Default)
Bearing：2BB
Motor：Japan High Quality Brushless Motor
Gear：Chrome-Titanium alloy gear
MKS HBL575SL
$ 149.99
MKS HBL575-SLLow Profile Servo
No.S0026003
Dimension：40.5 x 20.5 x 23.1 mm Notice: The working temperature is higher when working at 7.4V. Please install cooling fan or use servo on the environment of good ventilation. |
Torque: 10 kg-cm (4.8V) / 13.3 kg-cm (6.0V) / 16.8 kg-cm (7.4V)
Speed: 0.10 s (4.8V) / 0.08 s (6.0) / 0.07 s (7.4V)
Weight: 53.51 g
MKS HBL599
$ 189.99
MKS HBL599
Ultra Torque Servo
- Perfect Servo for 1/10, 1/8, 1/5 scale buggy.
- Ultra torque, incredible efficiency, and low power consumption.
- CNC Machined Metal Case Design for Exceptional Cooling.
- HD 4096 Resolution, 0.008ms Dead Band.
- Superior Holding Torque, Japanese Brushless Motor.
- Output performance to the top level – smoother, faster, and more efficient.
- Special design for high voltage 2s LiPo operation.
- Extremely strong Chrome-Titanium alloy gear, providing high level of durability that will survive heavy use.
No. S0026002
Dimension：40 x 20 x 38.5 mm
Working Voltage：3.5 ~ 8.4 V DC Volts (2S Lipo un-regulated)
Working frequency：1520μs / 333Hz
Dead Band：0.0008 ms (Default)
Bearing：2BB
Motor：Japan High Quality Brushless Motor
Gear：Chrome-Titanium alloy gear
MKS HBL850
$ 189.99
MKS HBL850
No. S0010009
Speed: 0.10 s (6.0V) / 0.079 s (7.4V) / 0.071 s (8.2V)
Weight: 73 g
Working Voltage：3.5 ~ 8.4 V DC Volts (2S Lipo un-regulated)
Working frequency：1520μs / 333Hz
Dead Band：0.0008 ms (Default)
Bearing：12x8 mm Double bearings
Motor：Brushless Motor
Gear：Chrome-Titanium alloy gear
Electric current draw： 6.2A max. (8.2V) / 5.8A max. (7.4V) / 4.7A max. (6.0V)
Wire Length：24 cm
MKS HBL860
$ 189.99
MKS HBL860
Ultra Torque servo for Airplane / Jet / Helicopter cyclic
No. S0010011
Speed: 0.15 s (6.0V) / 0.12 s (7.4V) / 0.11 s (8.2V)
Weight: 73 g
Dimension：40 x 20 x 38.5 mm
Working Voltage：4.8 ~ 8.4 V DC Volts (2S Lipo un-regulated)
Working frequency：1520μs / 333hz
Dead Band：0.0008 ms (Default)
Bearing：12x 8 mm Double bearings
Motor：Brushless Motor
Gear：Chrome-Titanium alloy gear
Electric current draw： 6.2A max. (8.2V) / 5.8A max. (7.4V) / 4.7A max. (6.0V)
Wire Length：24 cm
MKS HBL880
$ 199.99
MKS HBL880
No. S0010010
Speed: 0.044 s (6.0V) / 0.036 s (7.4V) / 0.032 s (8.2V)
Weight: 73 g
Dimension：40 x 20 x 38.5 mm
Working Voltage：4.8 ~ 8.4 V DC Volts (2S Lipo un-regulated)
Working frequency：760μs / 560hz
Dead Band：0.0008 ms (Default)
Bearing：12x8 mm Double bearings
Motor：Brushless Motor
Gear：Chrome-Titanium alloy gear
Electric current draw： 6.2A max. (8.2V) / 5.8A max. (7.4V) / 4.7A max. (6.0V)
Wire Length：24 cm

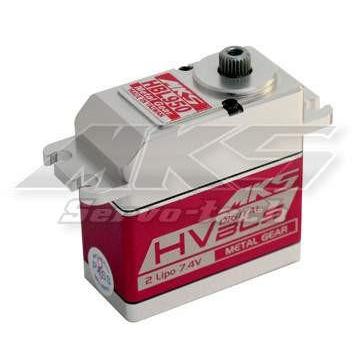

MKS HBL950
$ 135.00
MKS HBL950
No. S0010005
Speed: 0.12 s (6.0V) / 0.10 s (7.4V) / 0.09 s (8.2V)
Weight: 70.29 g
Working Voltage：3.5 ~ 8.4 V DC Volts (2S Lipo un-regulated)
Working frequency：1520μs / 333Hz
Dead Band：0.0008 ms (Default)
Bearing：2BB
Motor：Japan High Quality Brushless Motor
Gear：Chrome-Titanium alloy gear
Electric current draw： 6.2A max. (8.2V) / 5.8A max. (7.4V) / 4.7A max. (6.0V)
Wire Length：24 cm
MKS HBL960
$ 149.99
MKS HBL960
No. S0010012
Speed: 0.12 s (6.0V) / 0.10 s (7.4V) / 0.09 s (8.2V)
Weight: 70.15 g
Dimensions：40 x 20 x 40 mm
Operating Voltage：6.0 ~ 8.4 V DC Volts ( 2S Lipo un-regulated)
Working frequence：760μs / 560hz
Dead band：0.0008ms (Default)
Bearing Type：2BB
Motor Type：4 Pole Brushless Motor
Gear Type：Chrome-Titanium alloy gear
MKS HBL980
$ 139.99
MKS HBL980
No. S0010016
Speed: 0.040 s (6.0V) / 0.036 s (7.4V) / 0.030 s (8.2V)
Weight: 70.29 g
Dimensions：40 x 20 x 40 mm
Operating Voltage：6.0 ~ 8.4 V DC Volts ( 2S Lipo un-regulated)
Working frequence：760μs / 560hz
Dead band：0.0008ms (Default)
Bearing Type：2BB
Motor Type：4 Pole Brushless Motor
Gear Type：Chrome-Titanium alloy gear
MKS HBL990
$ 155.00
MKS HBL990
No. S0010013
Speed: 0.040 s (6.0V) / 0.036 s (7.4V) / 0.030 s (8.2V)
Weight: 70.55 g
Dimensions：40 x 20 x 40 mm
Operating Voltage：6.0 ~ 8.4 V DC Volts ( 2S Lipo un-regulated)
Working frequence：760μs / 560hz
Dead band：0.0008ms (Default)
Bearing Type：2BB
Motor Type：4 Pole Brushless Motor
Gear Type：Chrome-Titanium alloy gear
MKS HV1220
$ 89.99
MKS HV1220
Super Torque Servo
No. S0024001
- Ideal For 1/10 , 1/8, 1/5 Scale Buggies, Stadium Truck, Giant-Scale Aircraft, 600~700 Helis CCPM.
- Three Coppers Bushings / Strong, Accurate.
- Waterproof Bearing / Dustproof, Waterproof.
- Metal Alloy Gear / Wear-resistant, Smooth.
- Middle Aluminium Alloy Case / High Heat Dissipation.
- Japan High Quality Coreless Motor / Competition Level, High performance, High response, equal level as DS670.
- Providing high torque, incredible efficiency, and low power consumption.
Speed: 0.159 s (6.0V) / 0.140 s (6.8V) / 0.129 s (7.4V) / 0.115 s (8.2V)
Weight: 57.64 g
Dimensions：40 x 20 x 45 mm
Operating Voltage：4.8 ~ 8.4 V DC Volts ( 2S Lipo un-regulated )
Working frequence：1520μs / 333hz
Dead band：0.0008ms (Default)
Bearing Type：2BB
Motor Type：Japan High Quality Coreless Motor
Gear Type：Chrome-Titanium alloy gear
MKS HV1230
$ 89.99
MKS HV1230
High Torque Servo
No. S0024002
- Ideal For 1/10 , 1/8, 1/5 Scale Buggies, Stadium Truck, Giant-Scale Aircraft, 600~700 Helis CCPM.
- Three Coppers Bushings / Strong, Accurate.
- Waterproof Bearing / Dustproof, Waterproof.
- Metal Alloy Gear / Wear-resistant, Smooth.
- Middle Aluminium Alloy Case / High Heat Dissipation.
- Japan High Quality Coreless Motor / Competition Level, High performance, High response, equal level as DS670.
- Providing high torque, incredible efficiency, and low power consumption.
Speed: 0.129 s (6.0V) / 0.113 s (6.8V) / 0.104 s (7.4V) / 0.094 s (8.2V)
Weight: 57.79 g
Dimensions：40 x 20 x 45 mm
Operating Voltage：4.8 ~ 8.4 V DC Volts ( 2S Lipo un-regulated )
Working frequence：1520μs / 333hz
Dead band：0.0008ms (Default)
Bearing Type：2BB
Motor Type：Japan High Quality Coreless Motor
Gear Type：Chrome-Titanium alloy gear
MKS HV1240
$ 89.99
MKS HV1240
Super Speed Servo
No. S0024003
- Ideal For 1/10 , 1/8, 1/5 Scale Buggies, Stadium Truck, Giant-Scale Aircraft, 600~700 Helis CCPM.
- Three Coppers Bushings / Strong, Accurate.
- Waterproof Bearing / Dustproof, Waterproof.
- Metal Alloy Gear / Wear-resistant, Smooth.
- Middle Aluminium Alloy Case / High Heat Dissipation.
- Japan High Quality Coreless Motor / Competition Level, High performance, High response, equal level as DS670.
- Providing high torque, incredible efficiency, and low power consumption.
Speed: 0.095 s (6.0V) / 0.084 s (6.8V) / 0.077 s (7.4V) / 0.069 s (8.2V)
Weight: 57.55 g
Dimensions：40 x 20 x 37 mm
Operating Voltage：4.8 ~ 8.4 V DC Volts ( 2S Lipo un-regulated )
Working frequence：1520μs / 333hz
Dead band：0.0008ms (Default)
Bearing Type：2BB
Motor Type：Japan High Quality Coreless Motor
Gear Type：Chrome-Titanium alloy gear
MKS HV1250
$ 89.99
MKS HV1240
Ultra Speed Servo
No. S0024004
- Ideal For 1/10 , 1/8, 1/5 Scale Buggies. 600~700 Helis CCPM.
- Three Coppers Bushings / Strong, Accurate.
- Waterproof Bearing / Dustproof, Waterproof.
- Metal Alloy Gear / Wear-resistant, Smooth.
- Middle Aluminium Alloy Case / High Heat Dissipation.
- Japan High Quality Coreless Motor / Competition Level, High performance, High response, equal level as DS670.
- Providing high torque, incredible efficiency, and low power consumption.
Speed: 0.075 s (6.0V) / 0.066 s (6.8V) / 0.061 s (7.4V) / 0.054 s (8.2V)
Weight: 57.67 g
Dimensions：40 x 20 x 37 mm
Operating Voltage：4.8 ~ 8.4 V DC Volts ( 2S Lipo un-regulated )
Working frequence：1520μs / 333hz
Dead band：0.0008ms (Default)
Bearing Type：2BB
Motor Type：Japan High Quality Coreless Motor
Gear Type：Chrome-Titanium alloy gear
MKS HV777
$ 106.99
MKS HV777
No. S0011006
Dimensions：40 x 20 x 45 mm
Operating Voltage：4.8 ~ 8.4 V DC Volts ( 2S Lipo un-regulated )
Working frequence：1520μs / 333hz
Dead band：0.0008ms (Default)
Bearing Type：2BB
Motor Type：Japan High Quality Coreless Motor
Gear Type：Chrome-Titanium alloy gear
MKS HV777 A+
$ 114.99
MKS HV777
No. S0011007
Torque (6.0V): 29.5 kg-cm / 409.7 oz-in
Torque (7.4V): 36.5 kg-cm / 506.9 oz-in
Torque (8.2V): 40.4 kg-cm / 561.1 oz-in
Speed: 0.13 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
Weight: 75.45 g (2.66 oz)
Dimensions: 40 x 20 x 40 mm
| Dead Band | 0.0008 ms (Default) | |
| Control System | +Pulse Width Control | |
| Working Frequence | 1520μs / 333hz | |
| (RX) Required Pulse | 3.5 ~8.4 Volt Peak to Peak Square Wave | |
| Operating Voltage | 6.0 ~7.4 V DC Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (6V) | 0.13 sec/60° degrees at no load | |
| Operating Speed (7.4V) | 0.11 sec/60° degrees at no load | |
| Operating Speed (8.4V) | 0.10 sec/60° degrees at no load | |
| Stall Torque (6V) | 29.50 kg/cm - 409.7 oz/in | |
| Stall Torque (7.4V) | 36.5 kg/cm - 506 oz/in | |
| Stall Torque (8.4V) | 40.40 kg/cm - 561.1 oz/in | |
| Motor Type | Coreless Motor | |
| Potentiometer Drive | Indirect Drive | |
| Driver Type | FET | |
| Bearing Type | Dual Ball Bearings | |
| Gear Type | Titanium Gears | |
| Connector Wire Length | 15.0 cm (5.9 in) | |
| Dimensions | 40X20X40 mm (1.57x0.97x1.57 in) | |
| Weight | 75.45g - (2.66 oz) | |
