AR One Click Plus

BRC775

$ 12.95


Next Previous


Advance Radio One Click Plus

SKU: BRC775

Quick overview

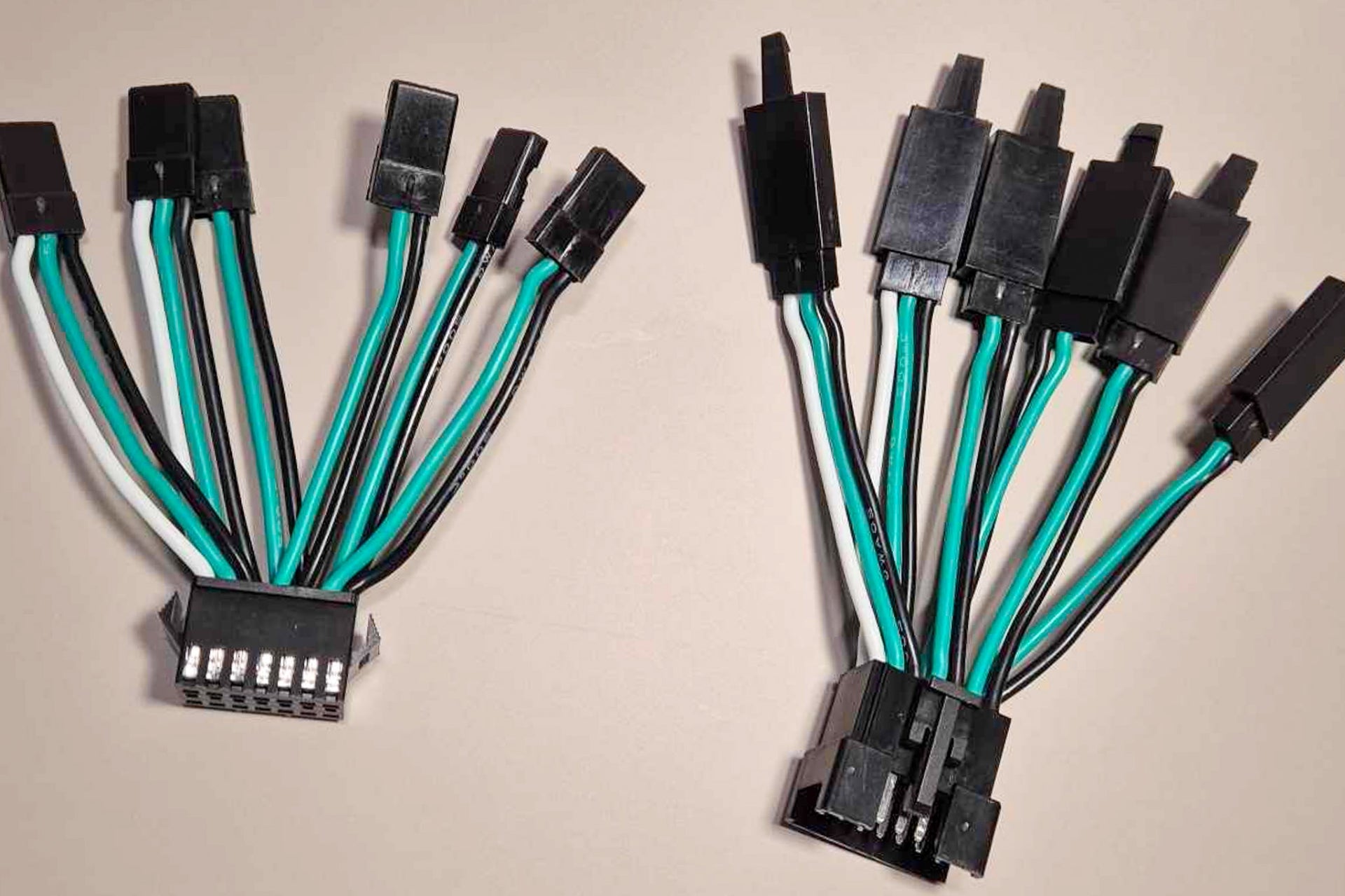

One-click multi servo connector for 2 servos and 4 independent power outputs for retracts, electric brakes, lights, and others.

Product Description

The AR one click makes putting your model together with a breeze, with a simple and easy to use a plug that connects inline with your existing servo leads, the One-Click is a must for any giant scale models.

The AR one-click comes standard with 6 Sets of independent 20AWG silicone wire and gold plated servo pins so you can connect completely different power systems together with one simple One Click + connector providing you with the best connection for your high powered models. And 20AWG silicon wire allowing for maximum current flow for high powered applications.

With our unique design and keyed locking plug, the AR one clicks are designed for over 10000 connects and disconnects. The added locking push clip gives total peace of mind.

NO SOLDERING REQUIRED - Each One-Click set comes ready-to-use out of the packet with 100mm of silicone cable pre-crimped for you allowing for easy installation in both the flying models or during the build phase.



Connects 2 servos and up to 4 power systems with separate power systems.

Example: Connect Aileron, Flaps, Electric gear, Electric Brakes, and 2 x lighting circuits with the AR One-Click Plus.



* 2 x independent servo connectors and 4 x independent power connectors.
* One-Click Connector Dimensions: 20mm(w) x 6.75mm(d)
* Cable tail length: 200mm (100mm male and 100mm female side)
* Wire: 20awg silicone high temp flexible wire.
* Positive locking multi-connector.
* Completely independent power and signal pins.
* Simple-to-Use and easy to set up.
