The FCX-001

The mighty morphing HELICOPTER: Bell unveils radical concept that can change the shape of its blade for different conditions

  • The morphing rotor blades can change shape for different flight conditions
  • It has a hybrid power system and an artificial intelligence computer assistant
  • The piloting system can be controlled through augmented reality
  • Passengers can watch TV, hold video conference calls and share documents
  • The aircraft frame is made from sustainable materials and can be customized
  • It has an anti-torque system in the tail boom designed to improve safety

Aerospace manufacturer Bell Helicopter unveiled their rotorcraft concept at Heli-Expo in Dallas, Texas this week.

The FCX-001 aircraft's frame is made from advanced sustainable materials, a hybrid power system, with a piloting system that can be controlled through augmented reality and an artificial intelligence computer assistant.

The passenger cabin has individualized entertainment systems, allowing passengers to watch TV, hold video conference calls and share documents with other passengers.

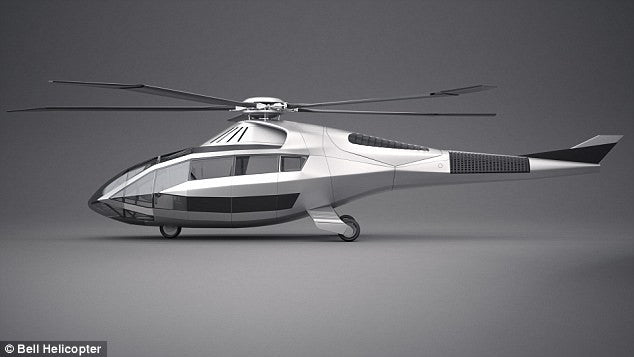

Aerospace manufacturer Bell Helicopter unveiled their rotorcraft concept at Heli-Expo in Dallas, Texas this week

The aircraft has an anti-torque system in the tail boom designed to improve safety, reduce noise and improve its performance.

Torque is a force that is the reaction of the rotor spinning around.

When the engine turns the rotor, there is an equal and opposite force that tries to turn the helicopter itself in the opposite direction.

This is similar to when someone uses an electric drill and it spins out of their hand when it becomes dislodged from whatever it's drilling.

So to prevent the body of a helicopter from spinning around, anti-torque systems were developed - they're a small propeller at the end of the aircraft.

The aircraft has morphing rotor blades that can change shape, allowing the aircraft to optimize performance in different flight conditions.

HOW IT WORKS

At first glance, the five main rotor blades look ordinary.

However, at each end is a 'morphing' section.

This allows the last few feet of the blades to swing forwards and backwards to optimize the rotor dynamics, rather like the way some fighter jets can 'sweep' their wings.

The morphing blades also help control tip noise in real time, and Bell said it has applied for a patent on the design.

The aircraft has morphing rotor blades that can change shape, allowing the aircraft to optimize performance in different flight conditions.

The FCX-001 aircraft's frame is made from advanced sustainable materials and is based on a hybrid power system

The airframe of the helicopter will harvest, store and distribute external energy or system energy not already being used for work on the air vehicle.

The airframe has also been designed to improve the aircraft's visibility and it customizable.

The aircraft has an anti-torque system in the tail boom designed to improve safety, reduce noise and improve its performance

The helicopter's hybrid propulsion system is composed of a thermal engine core which drives the main propulsion and feeds into the electric motors that provide power to the anti-torque propeller.

There is a single pilot seat in the front of the aircraft and the piloting system can be controlled through augmented reality and an artificial intelligence computer assistance system.

The passenger entertainment system will also be enhanced with the same augmented reality technology used for the piloting system

Its landing gear has non-traditional geometries that make it easier for the aircraft to function.

There is a single pilot seat in the front of the aircraft and a modular passenger cabin enhanced with the same augmented reality technology for the entertainment system.



THE FCX-001 AIRCRAFT - SPECS

Bell Helicopter said that they built the concept aircraft to address the evolving demands of their customers.

Some of the features of the FCX-001 concept rotorcraft include:

  • Aircraft frame made from advanced sustainable materials
  • Anti-torque system in the tail boom designed to improve safety
  • Airframe will harvest, store and distribute external energy or system energy
  • Morphing rotor blades to optimize performance in different flight regimes
  • Hybrid propulsion system composed of a thermal engine core
  • Piloting system that can be controlled through augmented reality
  • Artificial intelligence computer assistance system
  • Augmented reality passenger cabin entertainment systems, including the ability to watch TV, hold a video conference call and share documents with other passengers
